Ford Key Programming & Module Repair.
Done Right. With the Right Tools.
Ford's modern vehicles require FDRS — Ford's own dealer-level diagnostic and programming system. Without it, key programming, module replacement, and immobiliser work cannot be completed correctly. We are FDRS authorised and carry the equipment to every job.
Repair Software
Authorised
Ford Diagnostic & Repair Software — The Only Tool That Does the Job Properly.
FDRS is Ford's official dealer-level diagnostic and programming platform. It replaced the older IDS system and is now the mandatory tool for programming, configuring, and repairing modules on all modern Ford vehicles. Without FDRS, key programming on current Ford architecture is either impossible or incomplete.
FDRS connects directly to Ford's cloud-based module management system. When a technician performs programming via FDRS, the vehicle's VIN, module part numbers, and configuration are logged against Ford's central records. This creates a verifiable audit trail that generic tools cannot replicate.
For key programming specifically, FDRS is required to initialise PATS (Passive Anti-Theft System), erase and relearn keys, and synchronise the BCM with the PCM. Ford's own service documentation mandates FDRS for all modern PATS procedures.
For module replacement — BCM, APIM, ABS, PCM, IPC — FDRS restores the As-Built configuration specific to your vehicle's VIN, ensuring every option and parameter matches the original factory specification.
💬 Ask About Your Ford ModelConnected to Ford Server
Live footage of FDRS establishing a secure connection to Ford's server during an on-site visit in East London — this is the verified, manufacturer-authorised route required for key programming and module work.
- ✕Cannot access Ford As-Built module data
- ✕Cannot perform PMI restore or gateway relearn
- ✕Cannot recover partially flashed or corrupted modules
- ✕Cannot complete modern PATS key initialisation
- ✕No access to Ford OTA update recovery
- ✕No VIN-matched configuration data
- ✓Full As-Built data access — VIN-matched configuration
- ✓PMI restore, gateway relearn, module topology repair
- ✓Module firmware recovery and bootloader rewrite
- ✓PATS initialise, key erase, BCM + PCM synchronisation
- ✓OTA update recovery and failed flash correction
- ✓Full Ford audit trail — logged against vehicle VIN
Every EU Ford Model With FDRS Support — Passenger and Commercial.
FDRS covers the full range of modern Ford architecture. If your vehicle is listed below, we can perform key programming, module replacement, and fault code diagnostics on-site in East London.
- Ford Focus Late Mk4+ 2018–2025
- Ford Fiesta Late Mk8 2017–2023
- Ford Puma2019–present
- Ford Kuga2020–present
- Ford Explorer EV EV 2024–present
- Ford Capri EV EV 2024–present
- Ford Mustang Mach-E EV 2021–present
- Ford Mustang2024–present
- Ford Bronco2021–present
- Ford Edge2014–2024
- Ford Explorer2019–2023
- Ford EcoSport2018–2022
- Ford Transit2019–present
- Ford E-Transit EV 2022–present
- Ford Transit Custom2018–present
- Ford E-Transit Custom EV 2024–present
- Ford Transit Connect2022–present
- Ford Transit Courier2023–present
- Ford Tourneo Custom2023–present
- Ford Tourneo Connect2022–present
- Ford Tourneo Courier2023–present
Ford Key Cutting — On Site
A genuine Ford key blank being precision-cut on-site in East London, ready for FDRS programming to the customer's vehicle.
Ford Ranger PCM Programming
A Ford Ranger's Powertrain Control Module being reprogrammed using genuine FDRS diagnostic software.

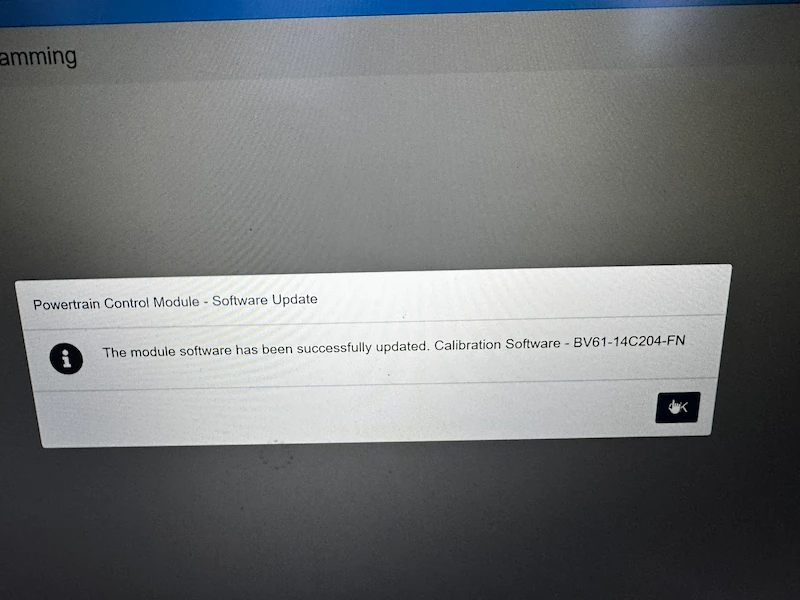

PCM Software Update
FDRS confirmation screen showing a completed Powertrain Control Module software update, with the calibration reference displayed.
Ford Key Programming, Module Work & FDRS Diagnostics — All On-Site.
Every service listed below requires FDRS to complete correctly on modern Ford architecture. We carry the equipment to perform all of this at your location — no recovery, no dealership, no waiting.
Key Programming & PATS Initialisation
Lost keys, additional keys, BCM + PCM sync, transponder relearn
PATS
▾
Modern Ford keys contain a transponder that must be enrolled into the vehicle's PATS network via BCM. FDRS is required to initialise the PATS system, erase existing key slots, enrol new transponders, and synchronise the BCM with the PCM. Ford's service documentation explicitly mandates FDRS for all current PATS procedures — the process cannot be completed with generic tools on newer architecture vehicles.
- ✓PATS initialisation and key slot management
- ✓All keys lost — full system relearn
- ✓Additional key programming to existing system
- ✓BCM + PCM synchronisation after replacement
- ✓Transponder data via SERMI-authorised channel
- ✓Keyless entry and push-start systems

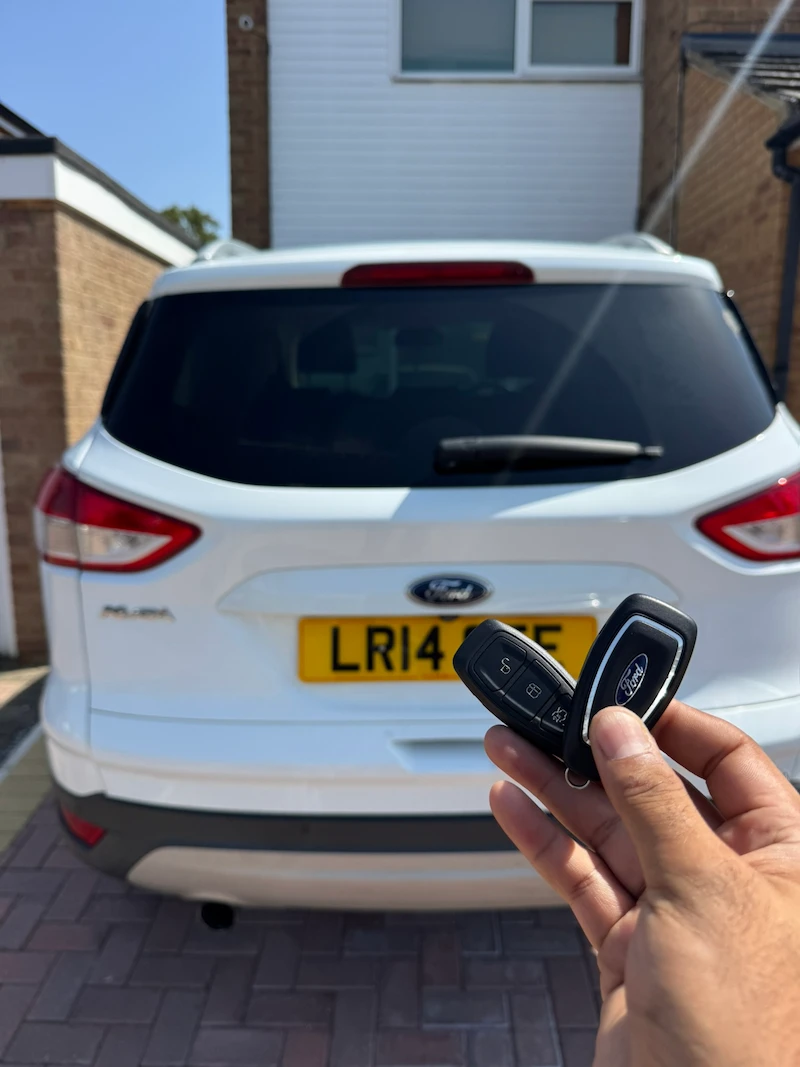

Ford Kuga Spare Key Programming
A spare Ford Kuga key being programmed at the rear of the vehicle on-site in Essex using FDRS.

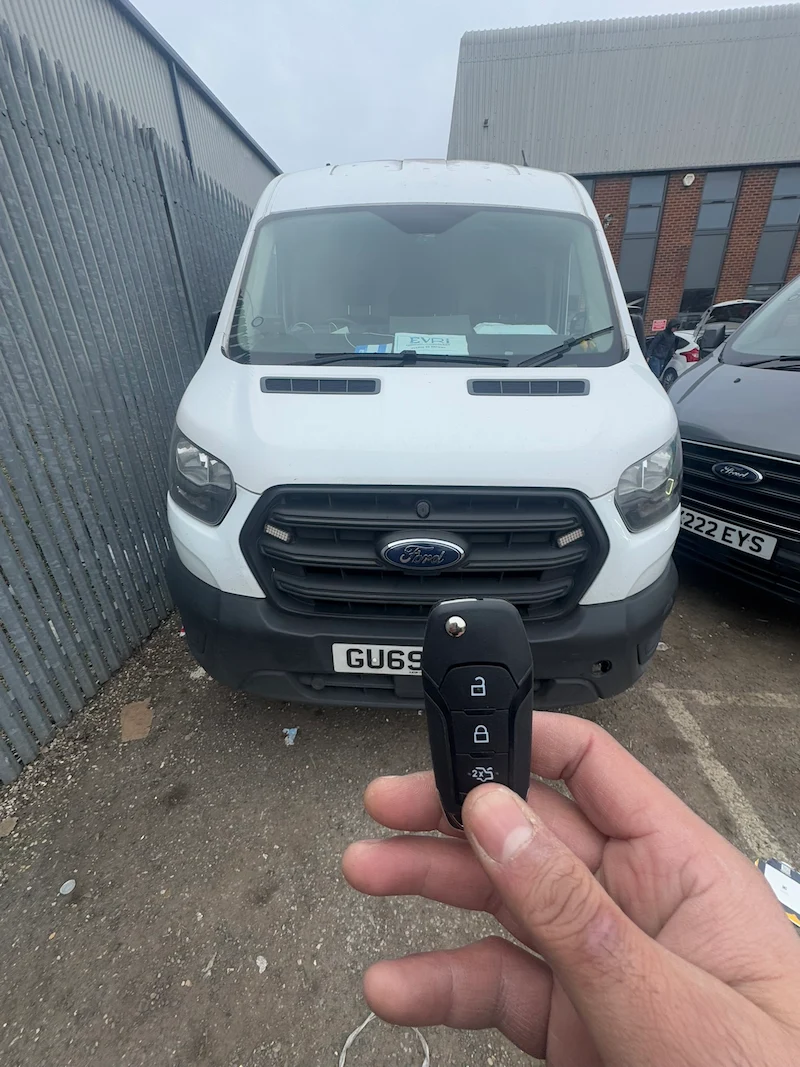

Ford Transit Key Coding — FDRS On Site
A new Ford Transit key being coded directly to the vehicle's PATS system via FDRS — completed on-site without needing to visit a dealership.
Module Programming & Replacement
BCM, PCM, APIM, ABS, IPC, PSCM — As-Built restore, VIN sync, PMI
Modules
▾
Every Ford module holds VIN-specific configuration data. When a module is replaced with a new or second-hand unit, it arrives blank or with incorrect configuration. FDRS restores the factory As-Built data — every parameter, every option, every calibration value — matched precisely to your vehicle's VIN. Without this step the module is present but not correctly configured.
- ✓As-Built data restore — VIN-matched factory config
- ✓PMI (Programmable Module Installation)
- ✓Central configuration rewrite
- ✓Gateway module sync and network topology relearn
- ✓Firmware flash and strategy file update
ECU Module Programming — On Site
A genuine Ford Remote Key supplied and programmed with new PCM Programmed in East London.
OTA Update Recovery & Failed Flash Repair
Interrupted updates, bricked modules, partial flash recovery
Recovery
▾
Ford's modern vehicles receive over-the-air software updates directly. When an update is interrupted — by a low battery, a lost connection, or a power event — the module can be left in a partially flashed state. The vehicle may not start, display multiple warning lights, or show communication faults across several systems. FDRS can recover a partially flashed module using bootloader rewrite and firmware recovery tools — often avoiding a full module replacement.
- ✓Partially flashed BCM, PCM, APIM, ABS modules
- ✓Bootloader rewrite for corrupted firmware
- ✓PMI restore after failed OTA
- ✓Voltage lock clearing on hybrid and EV modules
- ✓Gateway reset and CAN bus stability relearn
Ford Transit — OTA Module Recovery
A Ford Transit on-site in East London following an FDRS module recovery after previous failed ECU programming.
DPF Regeneration & Airbag (RCM) Programming
Diesel particulate filter forced regeneration, Restraint Control Module reset and programming
DPF / RCM
▾
Diesel Ford models — particularly Transit, Transit Custom, Kuga, and Ranger — use a Diesel Particulate Filter to trap soot from exhaust gases. Short journeys and stop-start driving can prevent the filter from reaching the temperature needed for natural regeneration, leading to a blocked filter, reduced power, and a DPF warning light. FDRS can initiate a forced regeneration cycle, raising exhaust temperature under controlled conditions to burn off trapped soot without removing or replacing the filter.
- ✓Forced DPF regeneration via FDRS
- ✓DPF soot load reading and diagnosis
- ✓Differential pressure sensor verification
- ✓Reset of DPF warning lights after regeneration
The Restraint Control Module (RCM) manages the airbag system, seatbelt pretensioners, and crash sensors. After an RCM replacement, an airbag deployment event, or a related fault, the module must be programmed and configured to the vehicle via FDRS. Driving with an unresolved airbag fault means the safety system may not deploy correctly in a collision — this is not a procedure that can be skipped or bypassed.
- ✓RCM replacement programming and VIN sync
- ✓Airbag warning light diagnosis and clearance
- ✓Crash data reset following non-deployment events
- ✓Seatbelt pretensioner system verification
Modules We Programme With FDRS
All of the following modules are programmed and repaired using genuine FDRS — generic tools cannot complete these procedures correctly.
- ✓BCM — Body Control Module
- ✓APIM — SYNC / Accessory Protocol Interface Module
- ✓ABS — Anti-Lock Brake Module
- ✓PCM — Powertrain Control Module
- ✓TCU / TCM — Transmission Control Module
- ✓PSCM — Power Steering Control Module
- ✓IPC — Instrument Panel Cluster
- ✓IPMA — Image Processing Module A
- ✓GWM — Gateway Module
- ✓RFA — Remote Function Actuator
- ✓BECM — Battery Energy Control Module (EVs)
- ✓RCM — Restraint Control Module (Airbag)
Common Ford FDRS Fault Codes — What They Mean & How We Fix Them.
These are the ten most common Ford diagnostic trouble codes we encounter on EU models. All require FDRS for correct diagnosis and repair.
U0100
U0100 — PCM Communication Failure
Low battery · interrupted OTA · failed module flash · CAN bus instability
Common
▾
U0100 — PCM Communication Failure
- ✓PCM software recovery
- ✓Gateway reset
- ✓Network topology relearn
U0100 and U0121 clearing together after PCM reflashing with FDRS is a well-documented resolution. Often appears alongside gateway communication errors after a failed OTA event.
U0121
U0121 — ABS Communication Failure
Transit · Kuga · Focus · Ranger — ABS light, AdvanceTrac, steering faults
Very Common
▾
U0121 — ABS Communication Failure
- ✓Reprogram ABS module
- ✓Brake bleed routines
- ✓Steering angle sensor recalibration
Extremely common across the Transit and Focus range. Ford service documentation and FDRS ABS programming procedures reference this code heavily. Often misdiagnosed as a hardware fault when it is a software configuration issue.
U2101
U2101 — Configuration Mismatch
Module replacement · incorrect FORScan coding · interrupted programming
Moderate
▾
U2101 — Configuration Mismatch
- ✓Restore factory As-Built data
- ✓Module parameter reset
- ✓VIN synchronisation
Seen frequently after SYNC/APIM replacements — particularly when aftermarket units or used modules are fitted without correct As-Built programming. FDRS restores the factory configuration in full.
U2300
U2300 — Central Configuration Error
Battery drain · failed BCM update · cloned modules
Common
▾
U2300 — Central Configuration Error
- ✓Rewrite central configuration
- ✓PMI data restore
- ✓Module strategy file rewrite
One of the most disruptive Ford faults — random warning lights and missing features across multiple systems. FDRS rewrites the full central configuration to factory specification, restoring all vehicle options.
U3000
U3000 — Internal Module Failure
BCM · PSCM · ABS · Gateway — software corruption, firmware recovery
Very Common
▾
U3000 — Internal Module Failure
- ✓Firmware recovery
- ✓Bootloader rewrite
- ✓PMI restore
Ford's most common software corruption DTC. FDRS frequently fixes this without replacing hardware — bootloader rewrite and PMI restore recover the module from a corrupted state, saving the cost of a new part.
B10D7
B10D7 — PATS / Immobiliser Fault
BCM replacement · dead battery · key programming attempts
Common
▾
B10D7 — PATS / Immobiliser Fault
- ✓Initialise PATS system
- ✓Erase and relearn keys
- ✓BCM + PCM synchronisation
Ford BCM programming documentation explicitly requires FDRS for modern PATS relearn. Non-FDRS key programming attempts frequently trigger B10D7 by failing to complete the BCM + PCM sync step correctly.
U023A
U023A — Forward Camera Communication Loss
Kuga · Puma · Mach-E · Transit Custom — lane assist, ADAS, pre-collision
Moderate
▾
U023A — Forward Camera Communication Loss
- ✓Recalibrate IPMA camera
- ✓Update ADAS firmware
- ✓Restore camera configuration
Commonly triggered after windscreen replacement when the camera is repositioned without IPMA recalibration. FDRS recalibrates the full ADAS system to factory specification.
U0155
U0155 — IPC Communication Loss
Low voltage · BCM faults · SYNC / APIM issues
Moderate
▾
U0155 — IPC Communication Loss
- ✓Reinitialise IPC
- ✓Rewrite cluster firmware
- ✓Recover configuration
IPC communication loss often appears alongside BCM faults as a secondary code. Resolving the root BCM issue via FDRS and then reinitialising the IPC clears both codes in most cases.
U0140
U0140 — BCM Communication Failure
Multiple modules offline · lighting faults · no crank · keyless entry failure
Critical
▾
U0140 — BCM Communication Failure
- ✓BCM PMI restore
- ✓Network gateway sync
- ✓Module topology repair
One of the most important Ford network faults. The BCM sits at the centre of Ford CAN architecture — when it loses communication, multiple dependent modules go offline simultaneously. FDRS PMI restore is the correct resolution.
U3003
U3003 — Voltage Threshold Fault
Hybrids · EVs · OTA-updated vehicles — weak battery, unstable power during programming
Common on EV/Hybrid
▾
U3003 — Voltage Threshold Fault
- ✓Clear persistent module voltage locks
- ✓Rerun initialisation sequence
- ✓Recover partially flashed ECUs
Particularly common on E-Transit and Mach-E following OTA update events. FDRS clears the voltage lock state and reruns the full initialisation sequence — often avoiding unnecessary hardware replacement.
